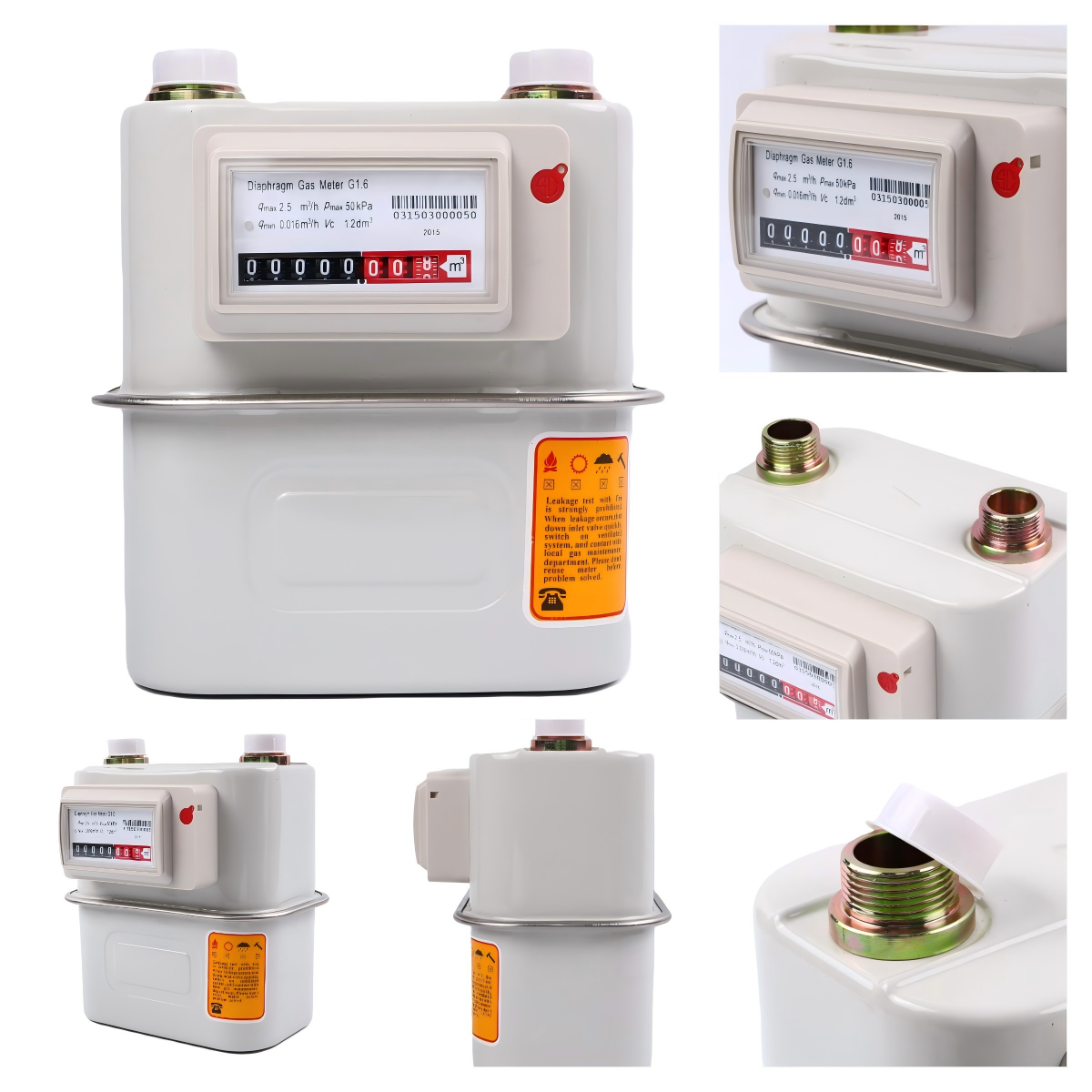

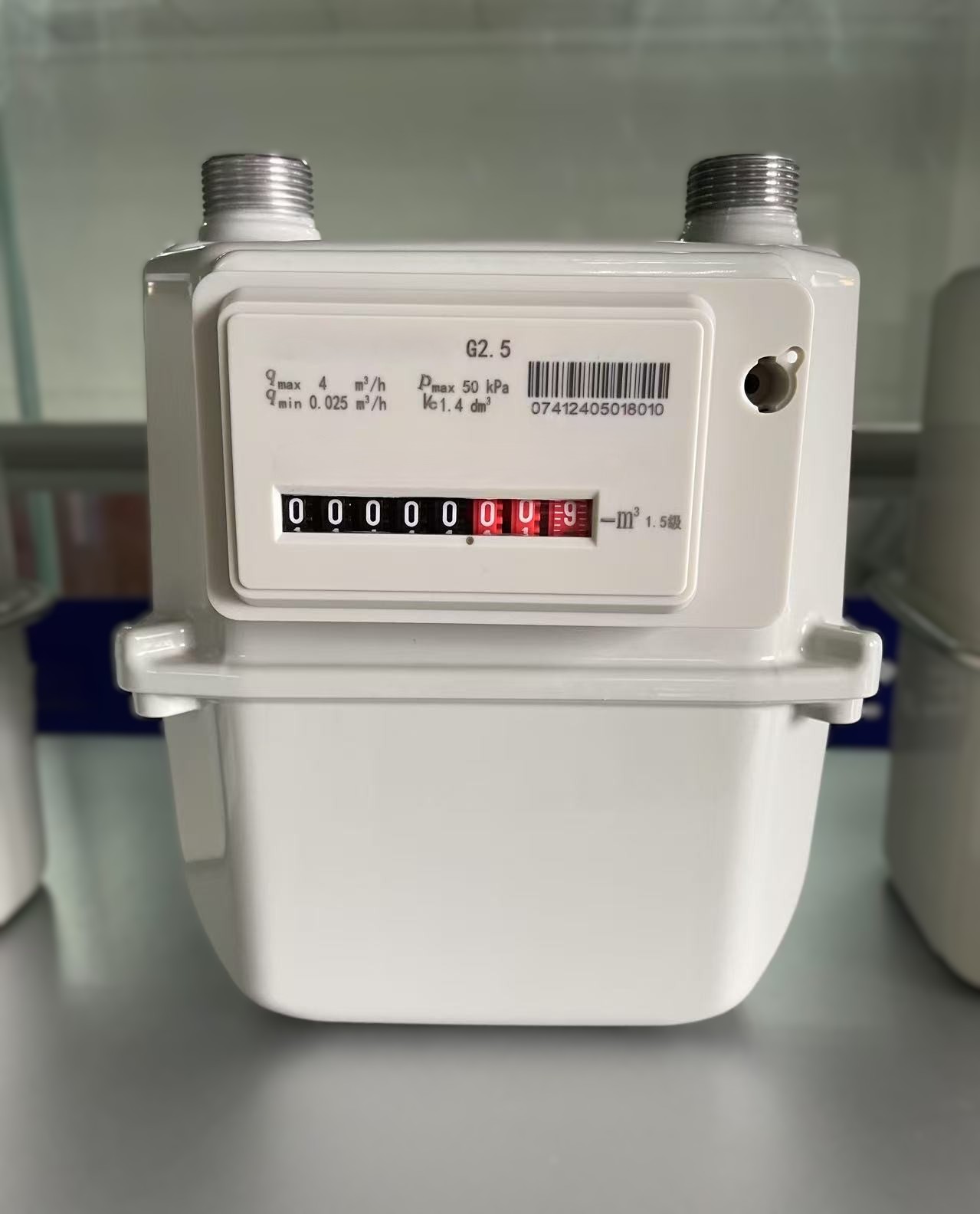

Residential Diaphragm Gas Meter

Description

Domestic diaphragm gas meter G1.6 /G2.5 /G4 is designed to meet the client’s highest demand with regarding to accuracy measurement and safety. It is widely used to measure the volume of natural gas, LPG and coal gas. It satisfies the requirements of GB/T6968-2019, OIML

R137 and EN1359-MID Standard.

Features

• Compact Size, light weight

• Stable accuracy and smooth operation

• High metrological performance, low noise level

• Low pressure loss

Functions

• Moving parts in self-lubricating materials.

• Body case: aluminum, two-pipe connection type, digital index.

• Synthetic diaphragms.

• Grid and distributing valve in thermosetting resin.

• Secured and sealed against illegal access.

• Equipped with a device to prevent the reverse flow of gas through gas through the meter.

• Magnet transmission keeps excellent sealing.

• The turning valve motion design ensures long term stability, and minimal wear.

• High quality internal plastic and stainless metal components, internal and external protection with powder painting guarantees the meter’s long-term service.

Technical Characteristics
