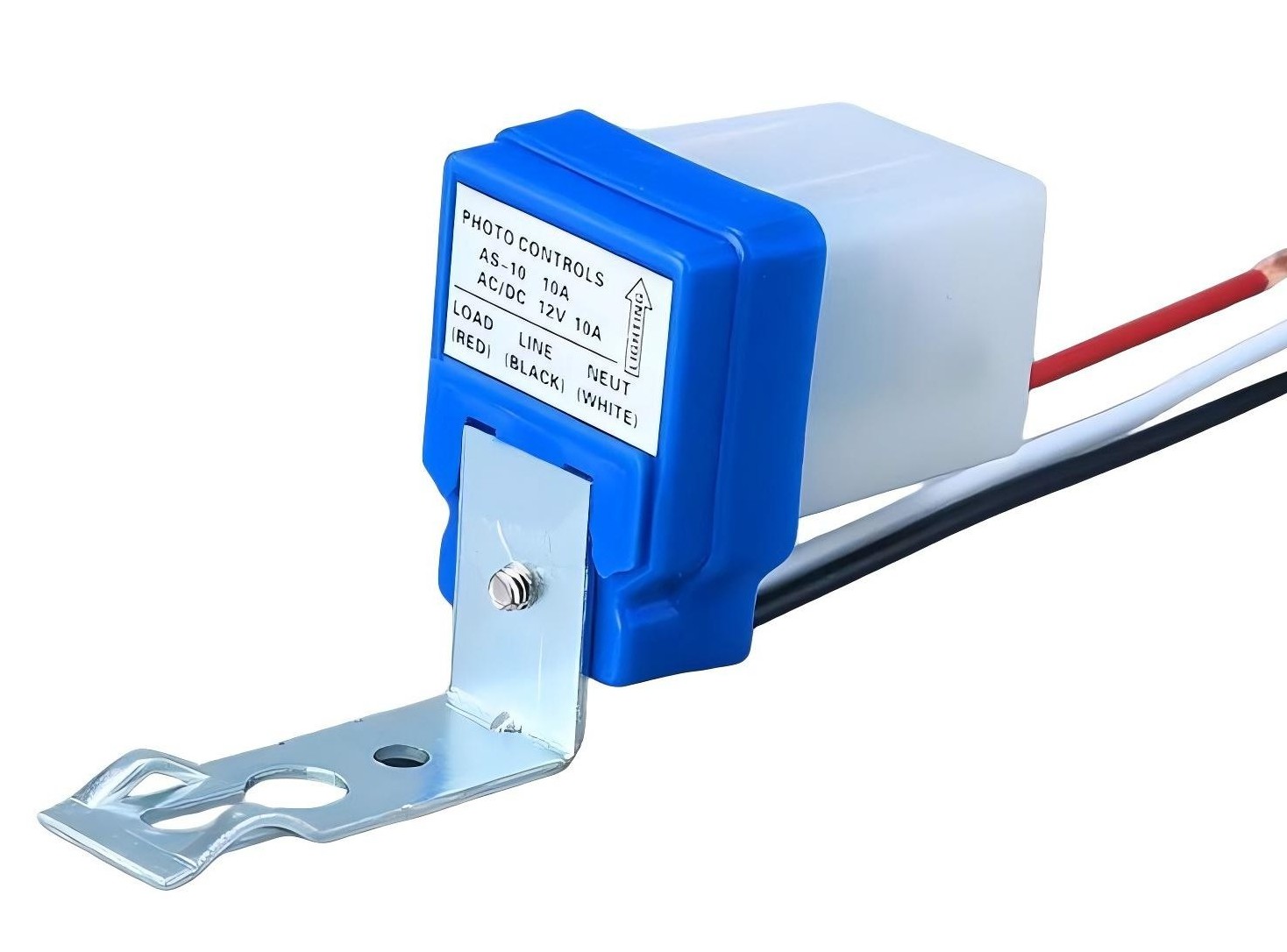

Photo Electric Street Lighting Control

Eenergy Conservation and Eenvironmental Protection

Features

The compact, reliable lighting control consists of sealed CDS photocells and momentary action bimetallic relays to ensure the reliability of electrical switching.

Specification

Voltage: AC 110V, 220V; DC 12V, 24V, 36V, 48V, 60V

Load Current: 3A, 6A, 10A, 15A, 25A

Frequency: 50-60Hz

Temperature: -20℃~+50℃

Power Consumption: Max 0.5W

Operation Illumination

Turn-ON Less 30 Lux

Turn-OFF Less 150 Lux

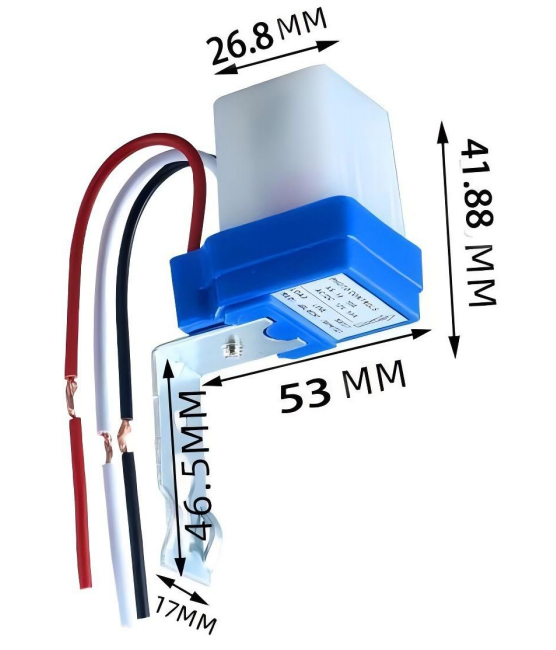

Dimension

Installation

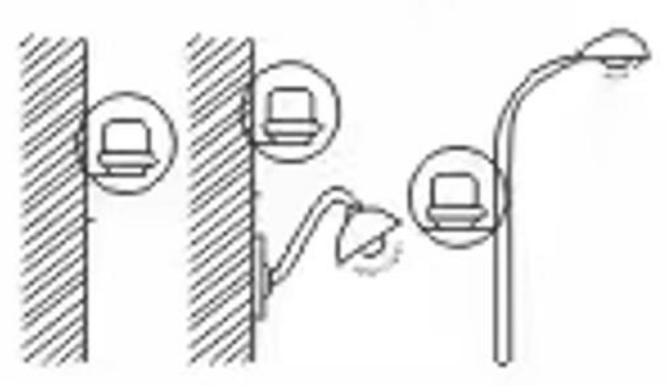

Correct

Install the control unit in direction making opal housing up-side.

Refer to below picture of CORRECT installation.

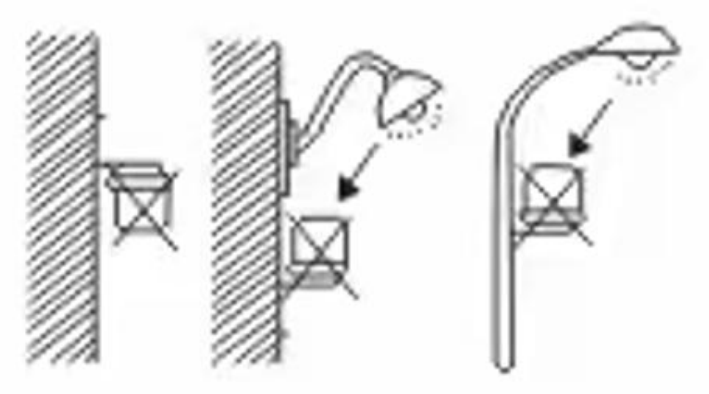

Incorrect

Do NOT install the control unit in a place extremely darker in daytime, or a place affected directly by lighting of tun-ON lamp.

Refer to below picture of WRONG installation.

Wiring Connection

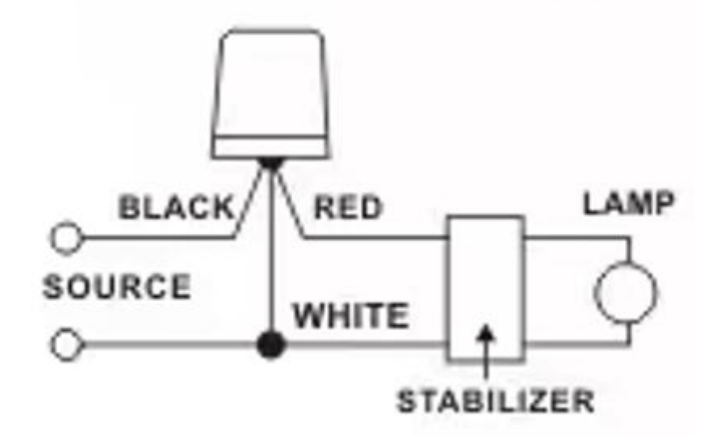

When using mercury or fluorescent lamps, connect the control unit to the primary side of the regulator.

For safety, connect the Red wire first.

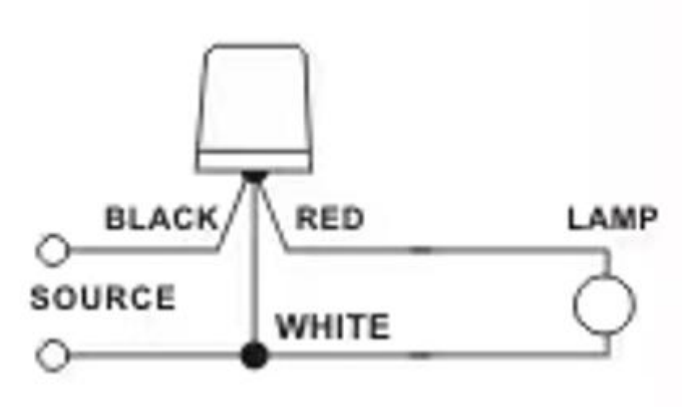

For incandescent lamps, connect the black and white wires (common) to the power source and the red and white wires to the lamp load.

CAUTION

The control unit may be damaged due to improper connection. When installed during the day, the device may start up first and then automatically Turn OFF within 3 minutes. This is normal operation.

Application

Street Light

Factory

Garden

Harbor

Airport

Farm

Park

Any other place.
